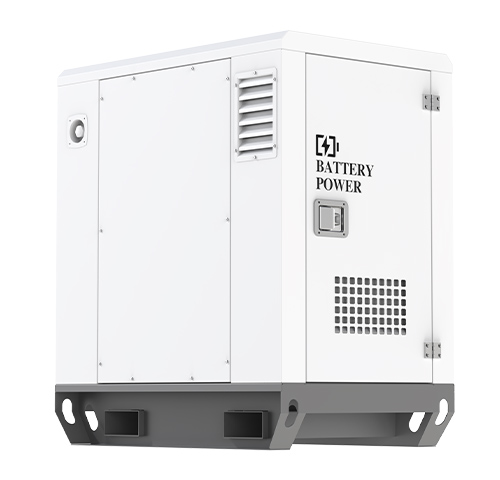

Sistema di accumulo energetico portatile compatto GENKX MP1230 - ESS 12kW/30kWh

Technical specifications

Model	MP12K-30V	MP12K-30C
Transfer Switch	A	100
Max AC Input	A 35	-
Inverter	Victron 15KVA (Single-phase)	12KW (Three-phase)
Output Frequency and Voltage	50/60Hz:L/N/PE230V	50/60Hz:L1/L2/L3/N/PE400V
Rated AC Output and UPS Power	W 15000	W 12000
Peak Power 10s	W 27000	W 24000, 5 S
Max AC Output Current (A) Maximum	A 63	A 17.5
Max Efficiency	95%	97.50%
Charging - Max Charging Current	A 200
Max Discharging Current	A 300
Solar - Max PV Input Power	4000	9000
Solar - Max Open Circuit Voltage V	250	800
Solar - MPPT Efficiency	>99%	99.9%
Solar - MPPTs Range V	0~245	200~650
Batteries - Rated Voltage V	51.2
Batteries - Rated Capacity Wh	5120 (Wh) multiplied by number of modules
Batteries - Max No. Modules	6
Batteries - Max Capacity KWH	30.72
Batteries - Working Temperature	Charging Temperature 0~65°C/Discharging Temperature -20~65°C
Batteries - Design Life	10+ Years
Batteries - Cycle Life	>6000 Cycles(25°C)
Authentication Level	IEC62619/CE/UN38.3
Warranty	10 Years to 80% retention(25°C)
