Compact Energy Storage System (ESS) is a mobile battery energy storage system that can serve as a supplement to traditional mobile power solutions. The MP1230 adopts a 12kw three-phase inverter and a 30kwh battery capacity, with a compact size, energy saving and environmental protection, high efficiency and reliability.
Technical specifications
| Model | MP12K-30V | MP12K-30C |
|---|---|---|
| Transfer Switch | A | 100 |
| Max AC Input | A 35 | - |
| Inverter | Victron 15KVA (Single-phase) | 12KW (Three-phase) |
| Output Frequency and Voltage | 50/60Hz:L/N/PE230V | 50/60Hz:L1/L2/L3/N/PE400V |
| Rated AC Output and UPS Power | W 15000 | W 12000 |
| Peak Power 10s | W 27000 | W 24000, 5 S |
| Max AC Output Current (A) Maximum | A 63 | A 17.5 |
| Max Efficiency | 95% | 97.50% |
| Charging - Max Charging Current | A 200 | |
| Max Discharging Current | A 300 | |
| Solar - Max PV Input Power | 4000 | 9000 |
| Solar - Max Open Circuit Voltage V | 250 | 800 |
| Solar - MPPT Efficiency | >99% | 99.9% |
| Solar - MPPTs Range V | 0~245 | 200~650 |
| Batteries - Rated Voltage V | 51.2 | |
| Batteries - Rated Capacity Wh | 5120 (Wh) multiplied by number of modules | |
| Batteries - Max No. Modules | 6 | |
| Batteries - Max Capacity KWH | 30.72 | |

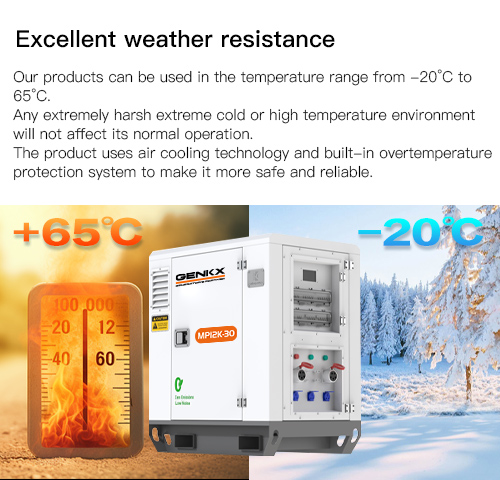

| Batteries - Working Temperature | Charging Temperature 0~65°C/Discharging Temperature -20~65°C | |
| Batteries - Design Life | 10+ Years | |
| Batteries - Cycle Life | >6000 Cycles(25°C) | |
| Authentication Level | IEC62619/CE/UN38.3 | |
| Warranty | 10 Years to 80% retention(25°C) | |
