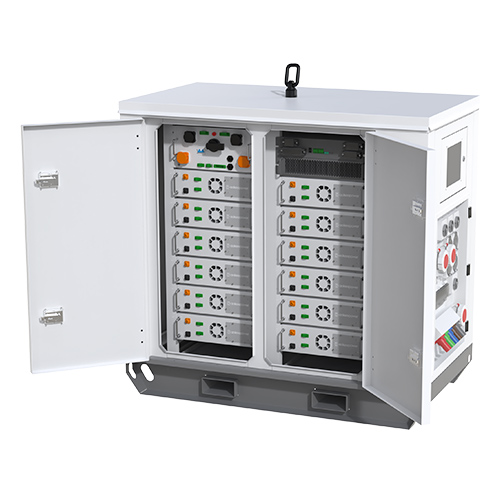

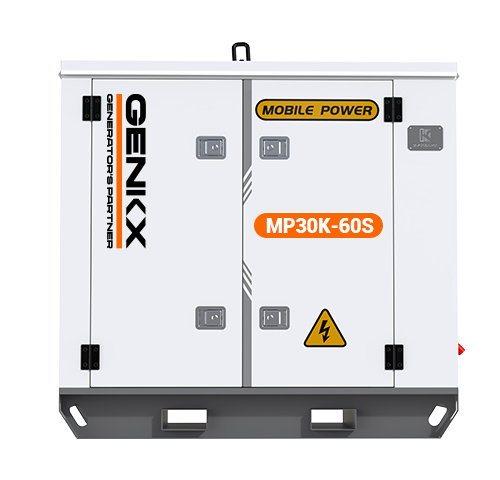

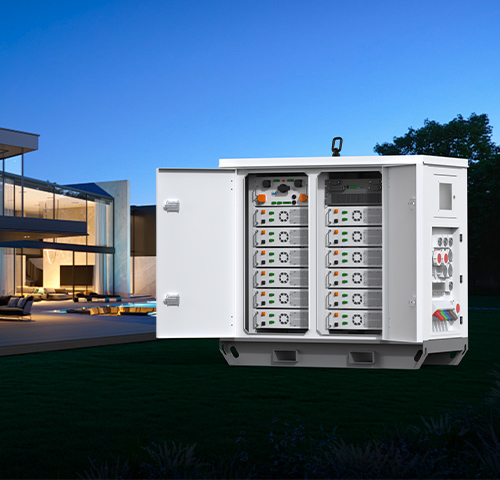

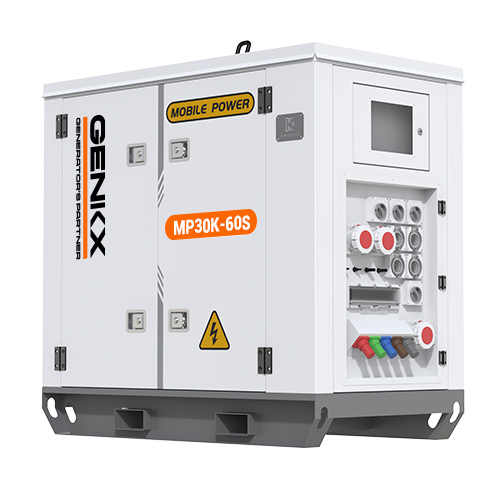

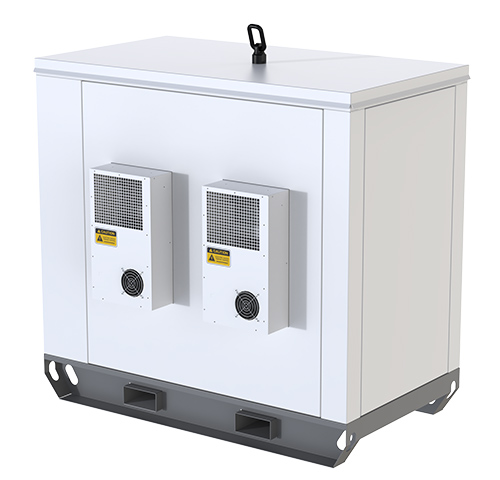

MP3060 adopts 30kw+60kWh, providing a capacity of up to 60kWh, with plug and play installation and integrated design, combined with diesel generators to achieve intelligent load management.
Technical specifications
| Model | MP30K-60S |
|---|---|
| Inverter | - |
| Output Frequency and Voltage | 50/60Hz:3L+N+PE/400V |
| Rated AC Output and UPS Power | kVA 30 |
| Peak Power 10s | KVA 37.5 |
| Max AC Output Current (A) Maximum | A 43.5 |
| Max Efficiency | 97.8% |
| Charging | - |
| Max Charging Current | A 100 |
| Max Discharging Current | A 100 |
| Solar | - |
| Max PV Input Power | 19.2KW+19.2KW |
| Max Open Circuit Voltage | V 850 |
| MPPT Efficiency | ＞99% |
| MPPTs Range | V 200~800 |
| Batteries | - |
| Rated Voltage | V 614.4 |
| Rated Capacity | KWh 61.44 multiplied by number of modules |
| Max No. Modules | 12 |

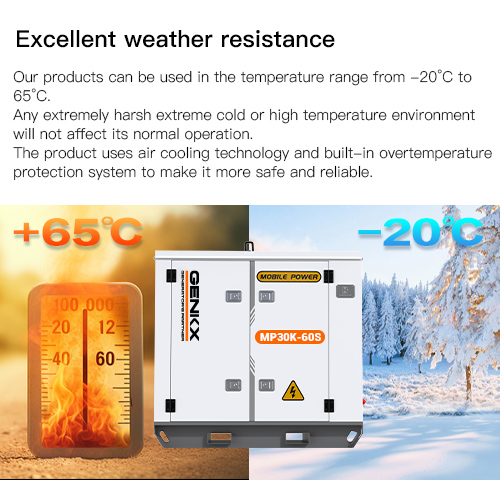

| Working Temperature | Charging Temperature 0~65°C/Discharging Temperature -20~65°C |
| Design Life | 10+ Years |
| Cycle Life | >6000 Cycles(25°C) |
| Authentication Level | IEC62619/CE/UN38.3 |
| Warranty | 10 Years to 80% retention(25°C) |
