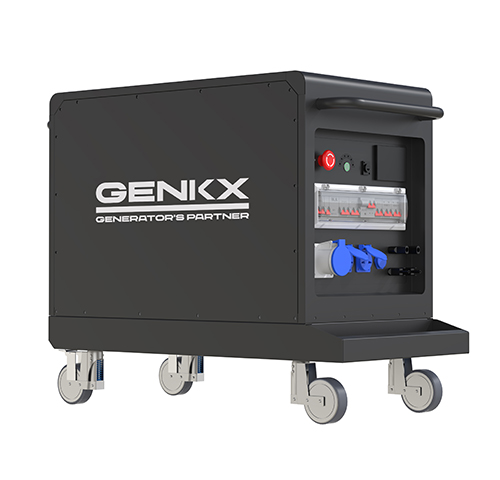

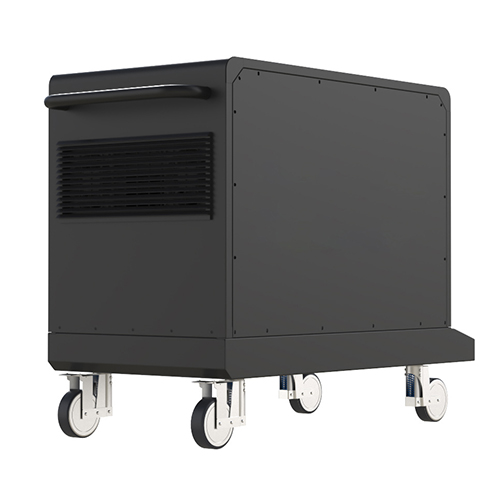

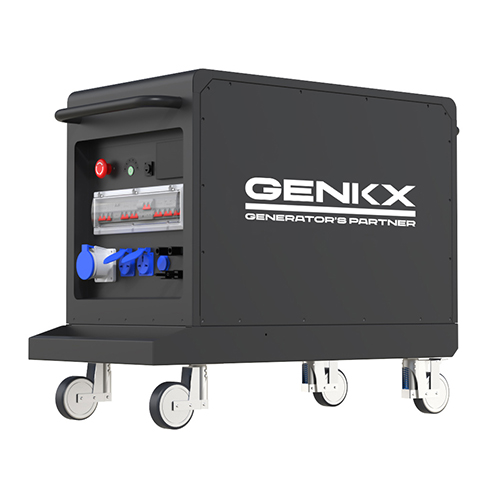

MP0512

GENKX MP0512

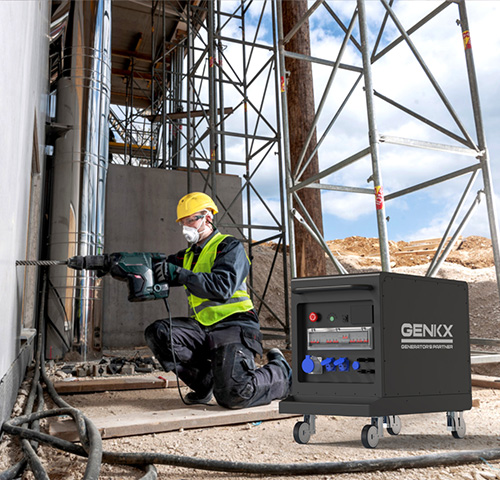

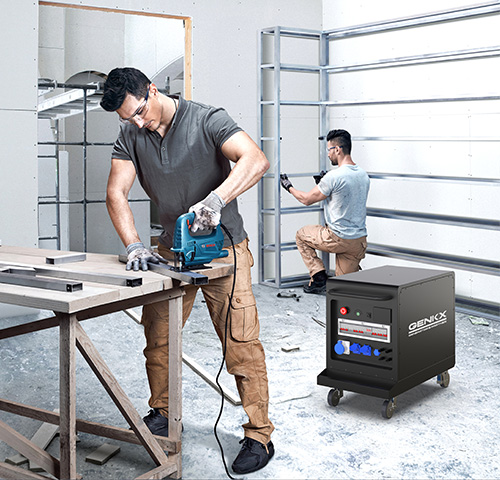

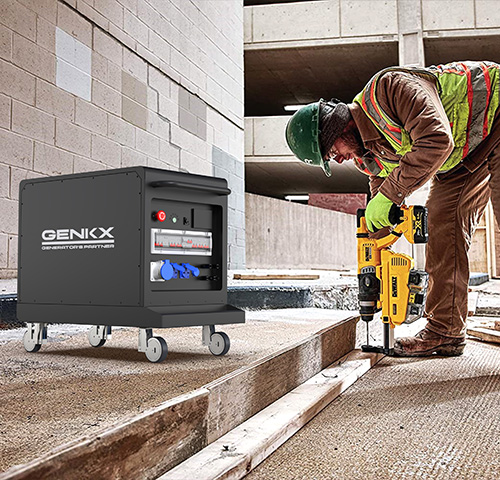

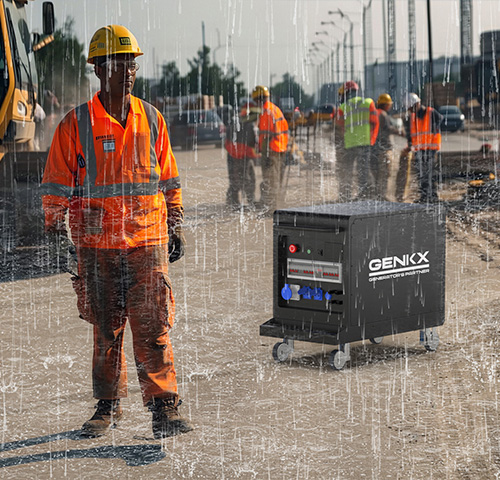

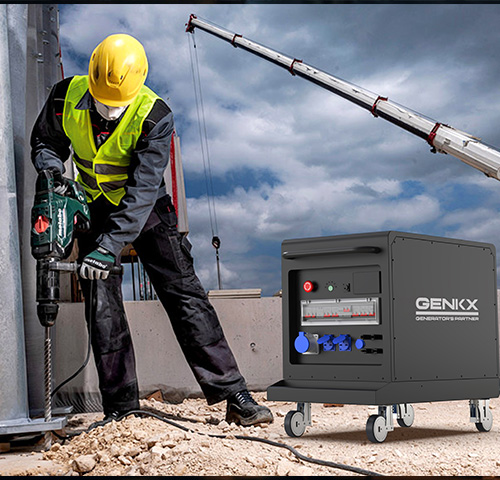

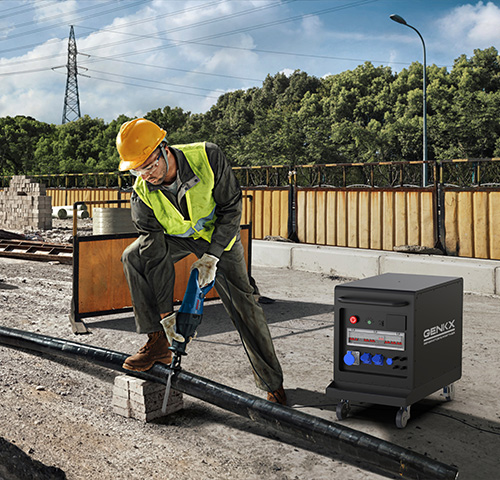

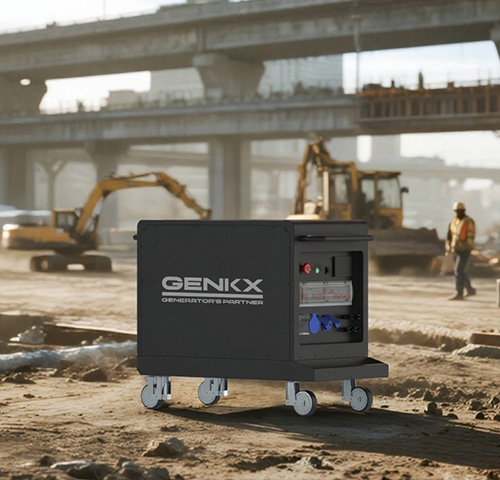

5kW power and a capacity of nearly 12kWh. This outdoor portable power station is designed to meet a variety of needs, whether it's for construction sites, mines, oil fields, aerial work platforms, emergency rescue operations, or municipal maintenance. It's versatile and reliable, making it a perfect solution for any of these scenarios.

Technical specifications

Model	MP05K-12
AC In and AC Out	A 40
Inverter - Output Frequency and Voltage	50/60Hz:1L/N/PE220/230V (Single - phase)
Inverter - Rated AC Output and UPS Power	W 5000
Inverter - Max AC Output Active Power	W 5000
Inverter - Peak Power	10000.3 S
Inverter - Max AC Output Current (A) Maximum	A 50
Inverter - Max Efficiency	94.00%
Charging - Max Charging Current	A 115
Charging - Max Discharging Current	A 200
Solar - Max PV Input Power	8800
Solar - Max Open Circuit Voltage	V 250
Solar - MPPT Efficiency	>99.5%
Solar - MPPTs Range	V 65 - 245
Batteries - Rated Voltage	V 51.2
Batteries - Max No. Modules	1
Batteries - Max Capacity	KWH 11.776
Batteries - Working Temperature	Charging Temperature - 10 - 65°C / Discharging Temperature - 20 - 65°C
Design Life	10 + Years
Cycle Life	>6000 Cycles (25°C)
Authentication Level	I - EN - IEC 62477 - 1; I - EN - IEC 62109 - 1; I - EN - IEC 62109 - 2
Warranty	10 Years to 80% retention (25°C)
Monitoring - WiFi	Yes
Monitoring - Ethernet	NO
Enclosure - Colour	Black
Enclosure - Protection Category	IP20

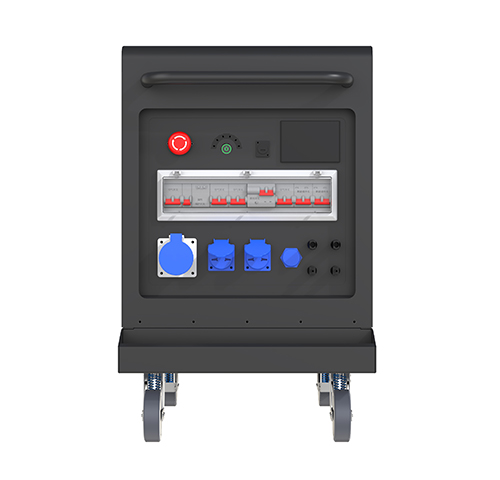

SOCKETS OPTIONS - IN (2P40A 230V)	1
SOCKETS OPTIONS - OUT (2P16A 230V)	2
SOCKETS OPTIONS - OUT (2P32A 230V)	1
DIMENSIONS AND WEIGHT - Dimensions (L x W x H)	mm 986480758
DIMENSIONS AND WEIGHT - Weight	kg 160
Container Loading Size - 20 ft	38 units
Container Loading Size - 40 ft	78 units
