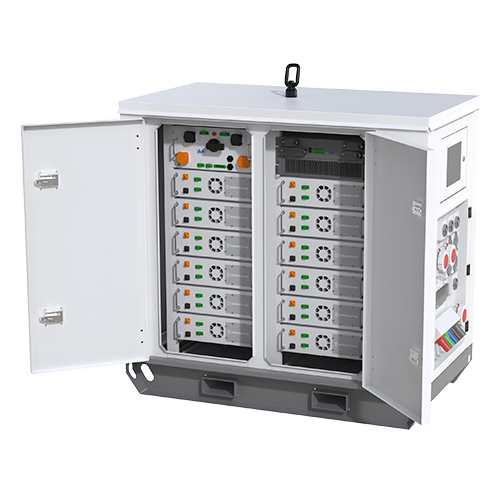

GENKX MP30K-60S MOBILE POWER - Long-Life Inverter

Technical specifications

Model	MP30K-60S
Inverter	-
Output Frequency and Voltage	50/60Hz:3L+N+PE/400V
Rated AC Output and UPS Power	kVA 30
Peak Power 10s	KVA 37.5
Max AC Output Current (A) Maximum	A 43.5
Max Efficiency	97.8%
Charging	-
Max Charging Current	A 100
Max Discharging Current	A 100
Solar	-
Max PV Input Power	19.2KW+19.2KW
Max Open Circuit Voltage	V 850
MPPT Efficiency	＞99%
MPPTs Range	V 200~800
Batteries	-
Rated Voltage	V 614.4
Rated Capacity	KWh 61.44 multiplied by number of modules
Max No. Modules	12
Working Temperature	Charging Temperature 0~65°C/Discharging Temperature -20~65°C
Design Life	10+ Years
Cycle Life	>6000 Cycles(25°C)
Authentication Level	IEC62619/CE/UN38.3
Warranty	10 Years to 80% retention(25°C)
